The TH-200U five-axis machining center is a specialized processing equipment for small-sized, high-precision core components of humanoid robots. It focuses on processing miniature and complex components such as dexterous hands, joint parts, joint housings, and shoulder joint housings. With the core advantages of “more convenient, more practical, and more economical”, it perfectly meets the flexible production requirements of multiple varieties, small batches, and high precision.
Product Features:
- Precise Processing Specifications: Three-axis travel: 400/400/350mm, spindle speed: 20,000 rpm, positioning accuracy: 0.007/0.005/0.005mm, rapid movement speed: 48/48/48m/min, A-axis swing angle: -110°/+50°
- Efficient Flexible Configuration: Standard 30T tool magazine, easily meeting the multi-scenario and multi-process processing requirements of humanoid robots; equipped with a high-precision DD turntable with a scale sensor, the maximum torque of the tilt axis is 332Nm, the rotation axis is 78Nm, and the maximum rotational speed is both up to 250 rpm, ensuring stable and powerful power output.

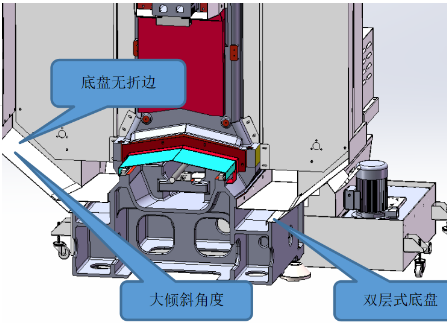

- Innovative Process Design: Eliminates the bamboo joint tube, equips a ball head ring spray cooling system, completely avoiding turntable interference, achieving full cooling during the processing, improving surface quality and tool lifespan; integrated large and extended main shaft box, rear-mounted design of the turntable, effectively releasing the 275mm ultra-large swing axis rear travel, providing more spacious processing space.
